GT30 GT3037 GT3076 Turbocharger 4/6 Cylinder 2.5L-3.0L T3 4-Bolt Water Cooled

Product Description

Upgrade your vehicle’s turbocharging system with this high-performance GT30 / GT3037 / GT3076 universal water-cooled turbocharger. Designed for 4- and 6-cylinder engines from 2.5L to 3.0L, this turbocharger is suitable for a wide range of performance and aftermarket applications.

Featuring a 4-bolt T3 exhaust flange, dual 0.60 / 0.82 A/R options and a water-cooled centre housing, this turbocharger is designed to provide strong airflow, improved response and reliable performance under demanding conditions.

Manufactured using durable aftermarket materials, including a ductile iron turbine housing, K418 alloy turbine wheel and lightweight aluminium compressor housing, it offers a strong combination of performance, durability and value.

Key Features

• Universal turbocharger for 4 / 6-cylinder engines
• Suitable for 2.5L–3.0L engines
• Compatible with GT30, GT3037 and GT3076 applications
• Standard T3 exhaust inlet flange
• 4-bolt exhaust outlet flange
• Dual 0.60 / 0.82 A/R configuration
• Water-cooled centre housing
• Capable of supporting applications up to approximately 500HP
• High-performance aftermarket replacement
• Durable ductile iron turbine housing
• High-temperature-resistant K418 alloy turbine wheel
• Lightweight aluminium compressor housing
• Cast aluminium compressor wheel
• Designed for improved airflow and turbo response
• Suitable for performance and tuning applications
• Brand new condition

Specifications

• Turbo Type: GT30 / GT3037 / GT3076
• Application: 4 / 6 Cylinder Engines
• Engine Size: 2.5L–3.0L

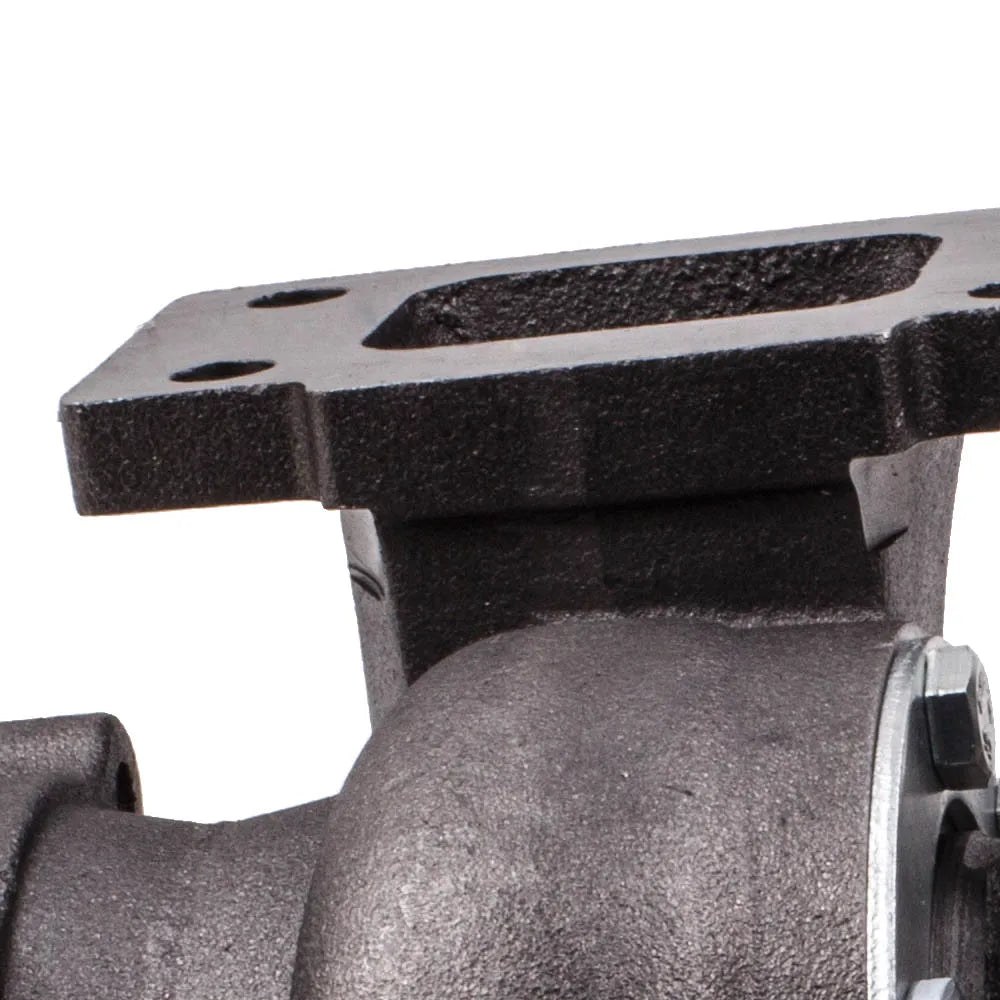

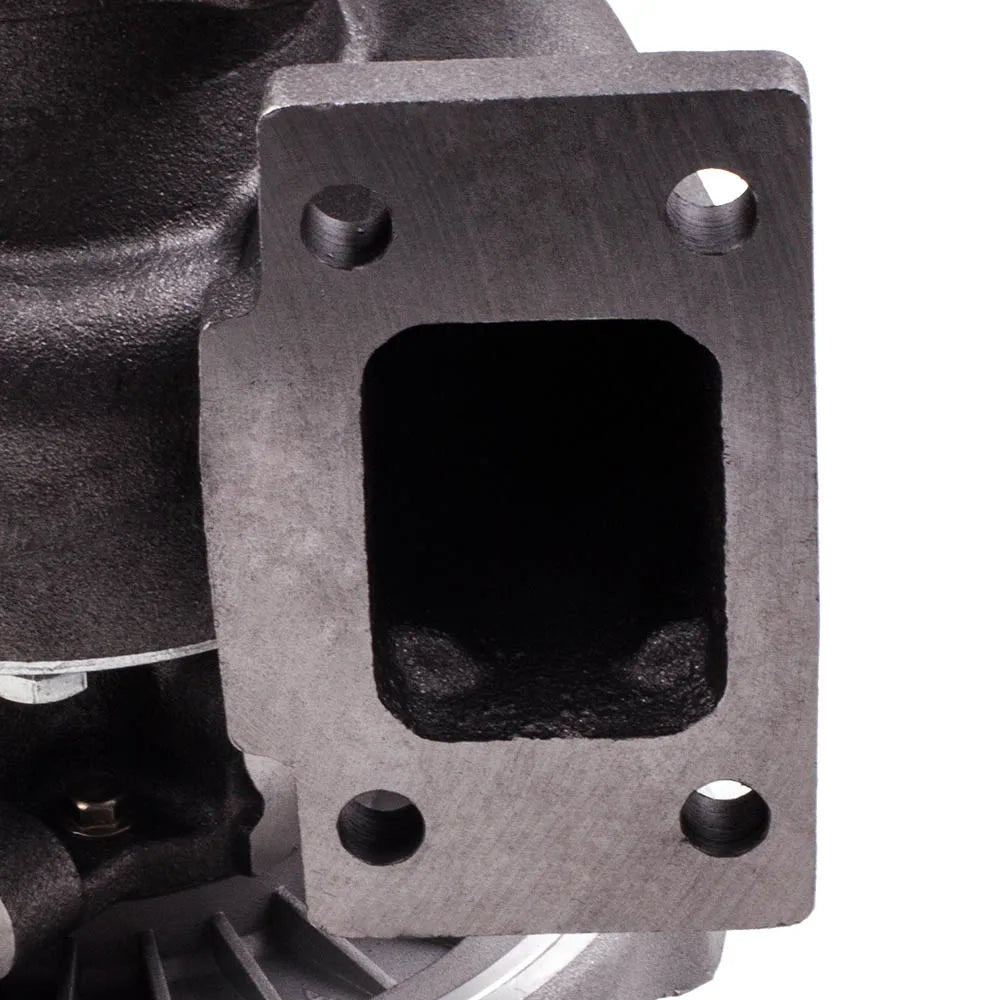

• Exhaust Inlet Flange: Standard T3

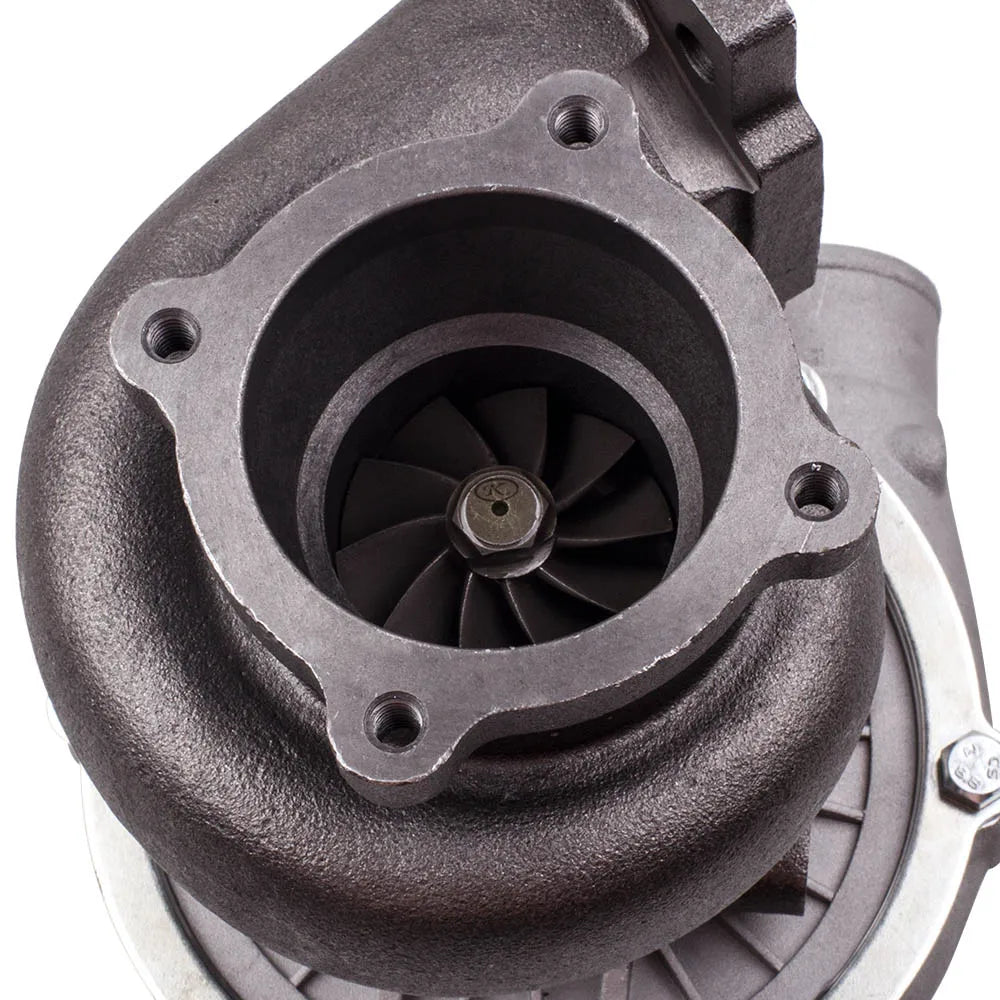

• Exhaust Outlet Flange: 4-Bolt
• Turbine Size: GT30
• Turbine Inducer Diameter: 64.8mm
• Turbine Exducer Diameter: 56.8mm
• Turbine A/R: 0.82
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 62.7mm
• Compressor Exducer Diameter: 76mm
• Compressor A/R: 0.60

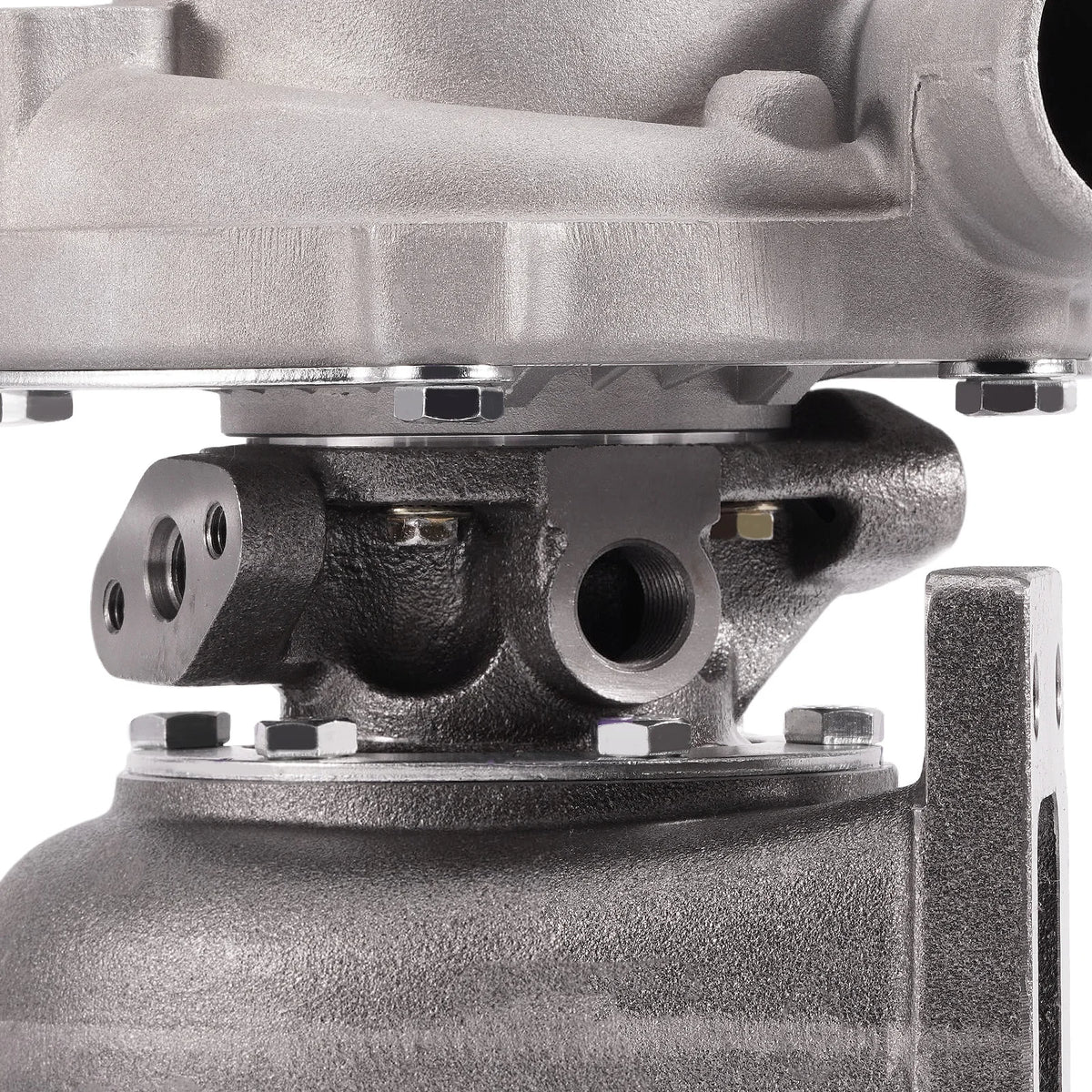

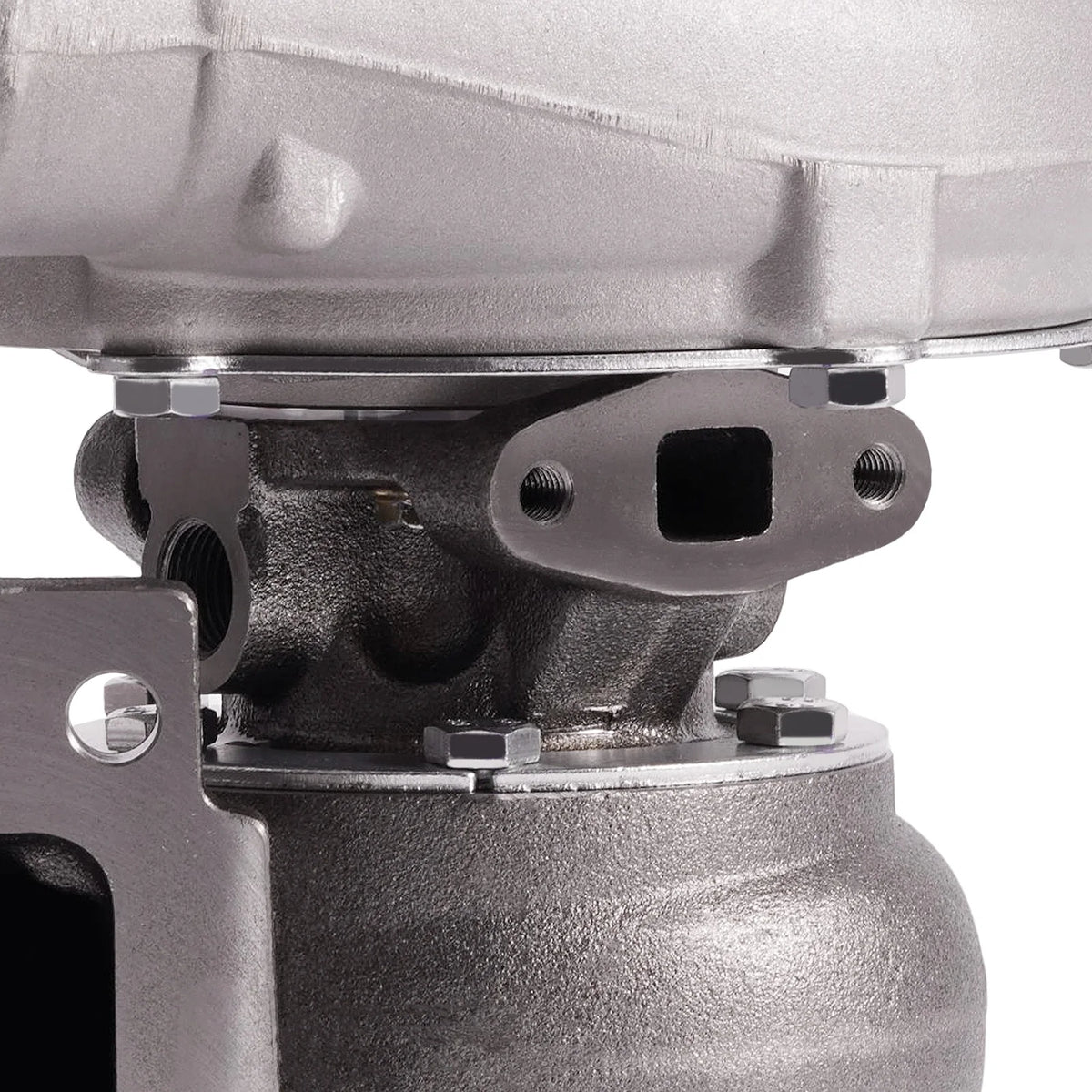

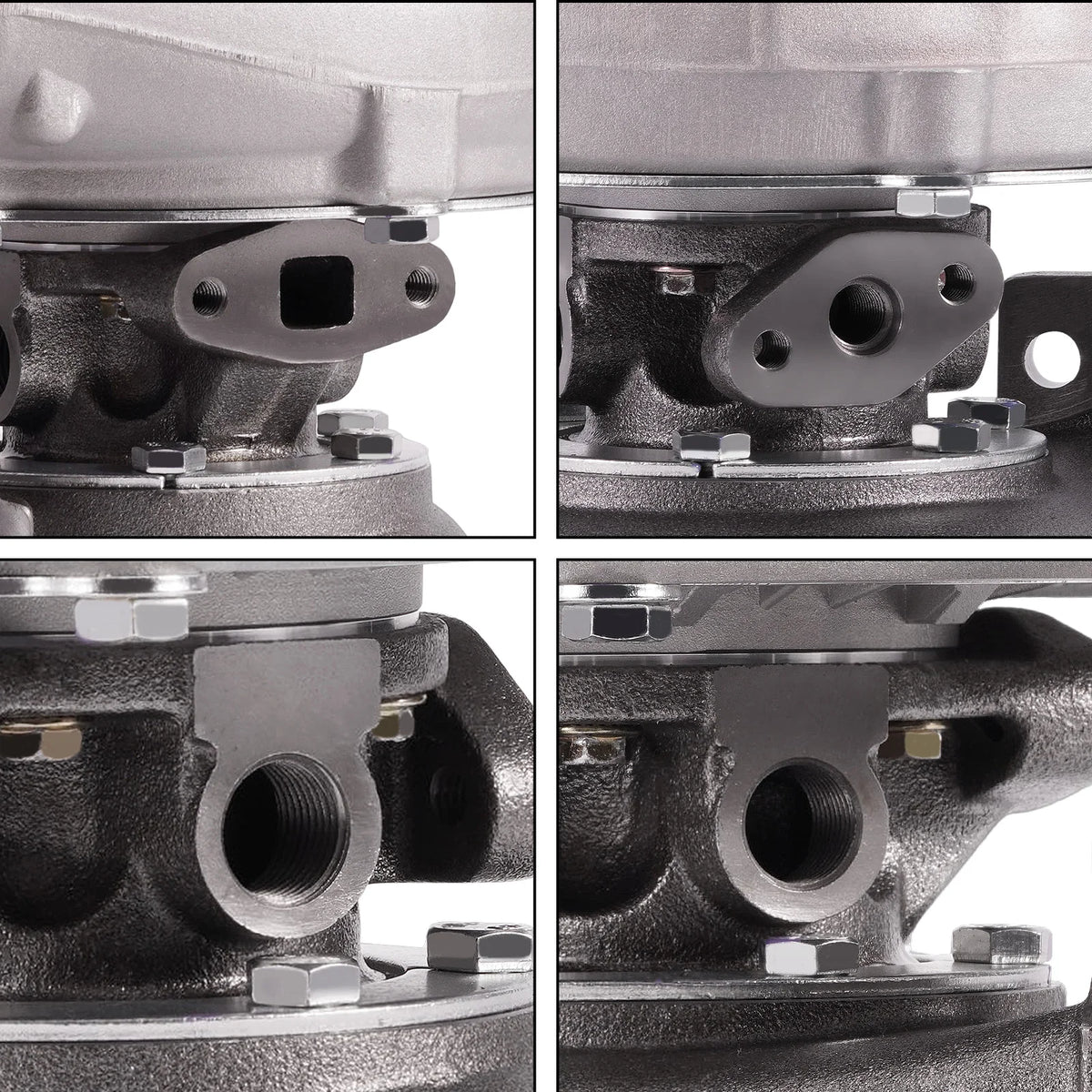

• Oil Inlet: M12 × 1.25 & 2 × M8 × 1.25
• Oil Outlet: 2 × M8 × 1.25
• Water Ports: M18 × 1.5
• Cooling: Water & Oil Cooled
• Horsepower: Suitable for applications up to approximately 500HP
• Wastegate: Without Wastegate
• Thrust Bearing: 270°
• Turbo Type: Individual
• Condition: Brand New
• Package Dimensions: Approx. 35 × 28 × 24cm
• Package Weight: Approx. 8.75kg

Construction & Performance

• Turbine Housing: Ductile iron QT450-10, temperature resistant up to approximately 700°C
• Turbine Wheel: K418 alloy, designed for high oxidation resistance and temperatures up to approximately 900°C

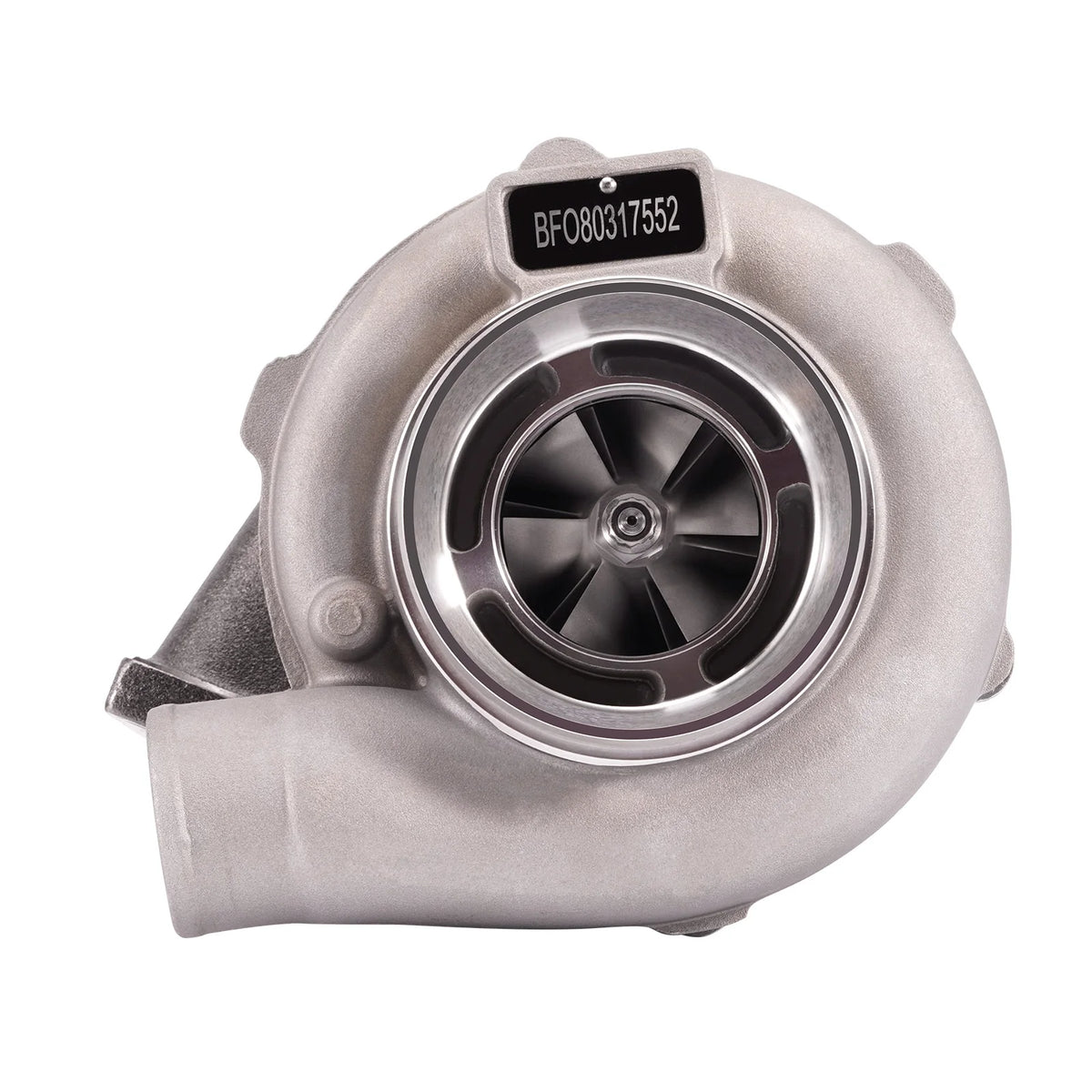

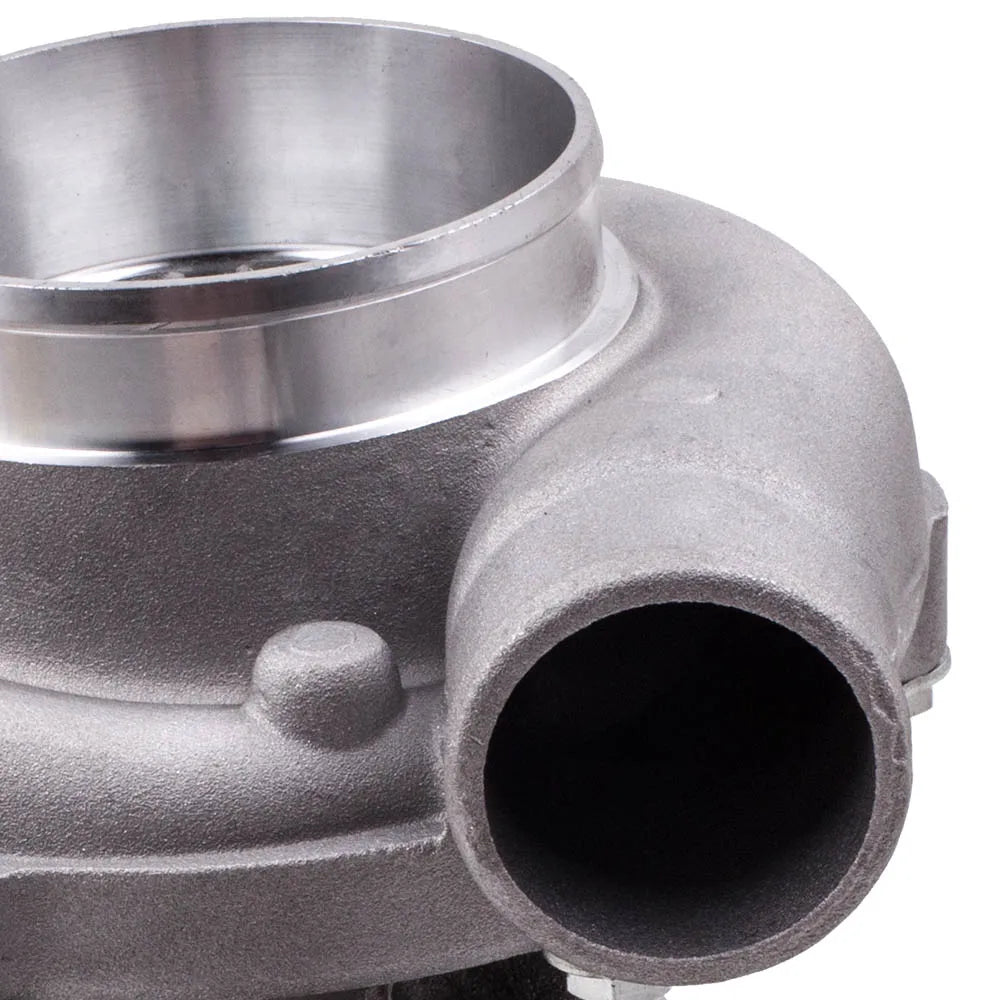

• Compressor Housing: ZL104 aluminium alloy

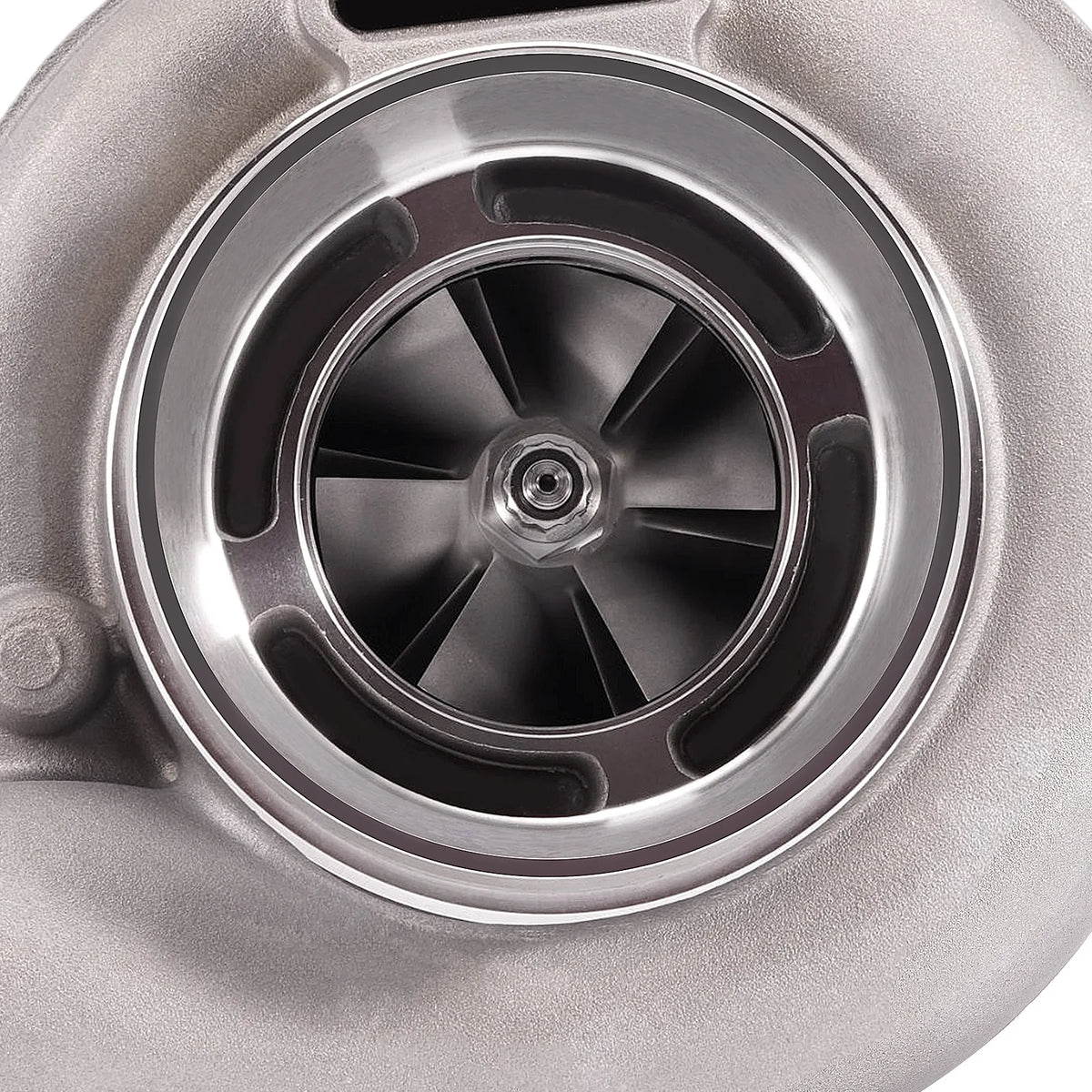

• Compressor Wheel/Blades: Cast aluminium construction
• High-speed oil sealing system
• Precision-balanced design
• Built for durability and demanding performance applications
• Designed to provide increased airflow and improved turbocharger performance

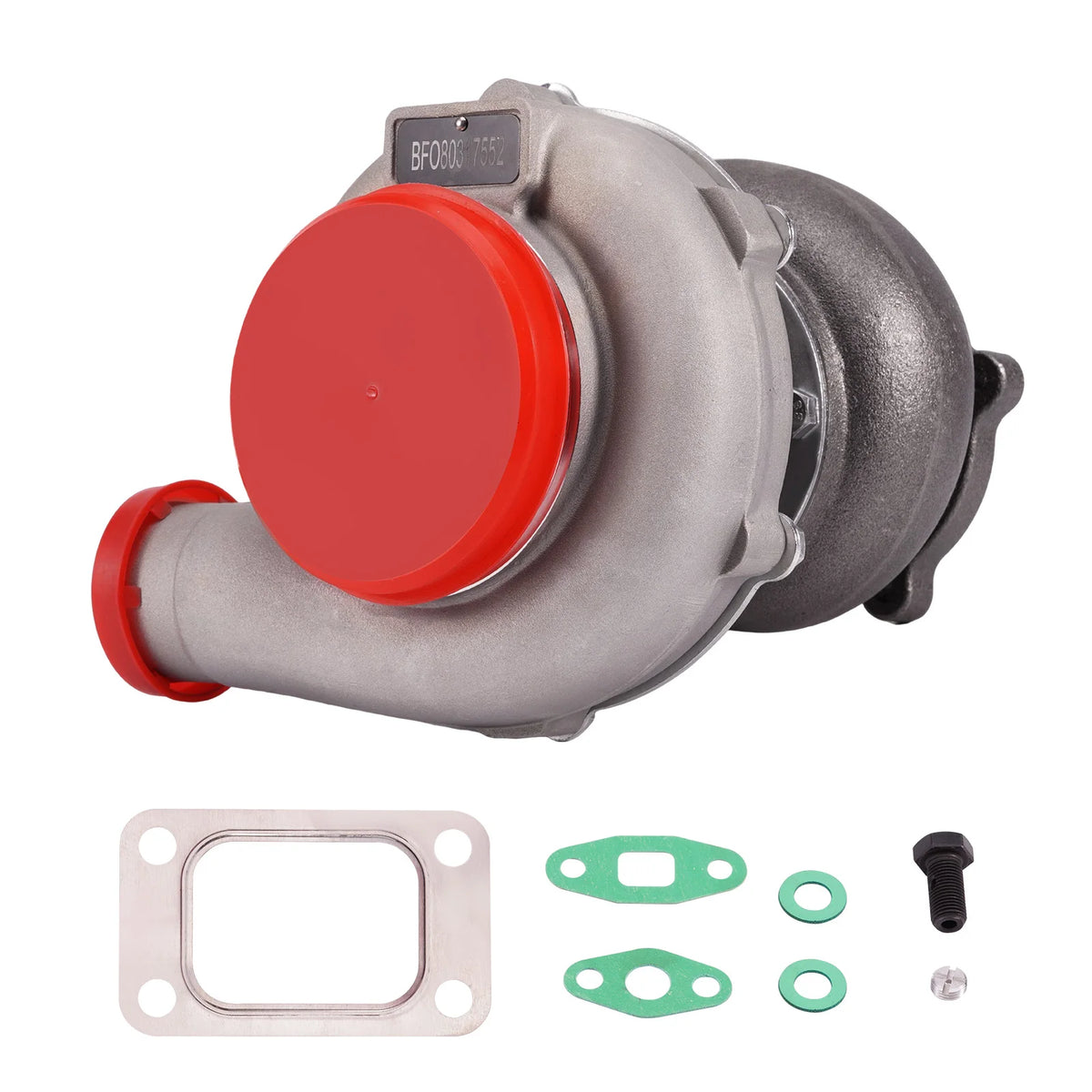

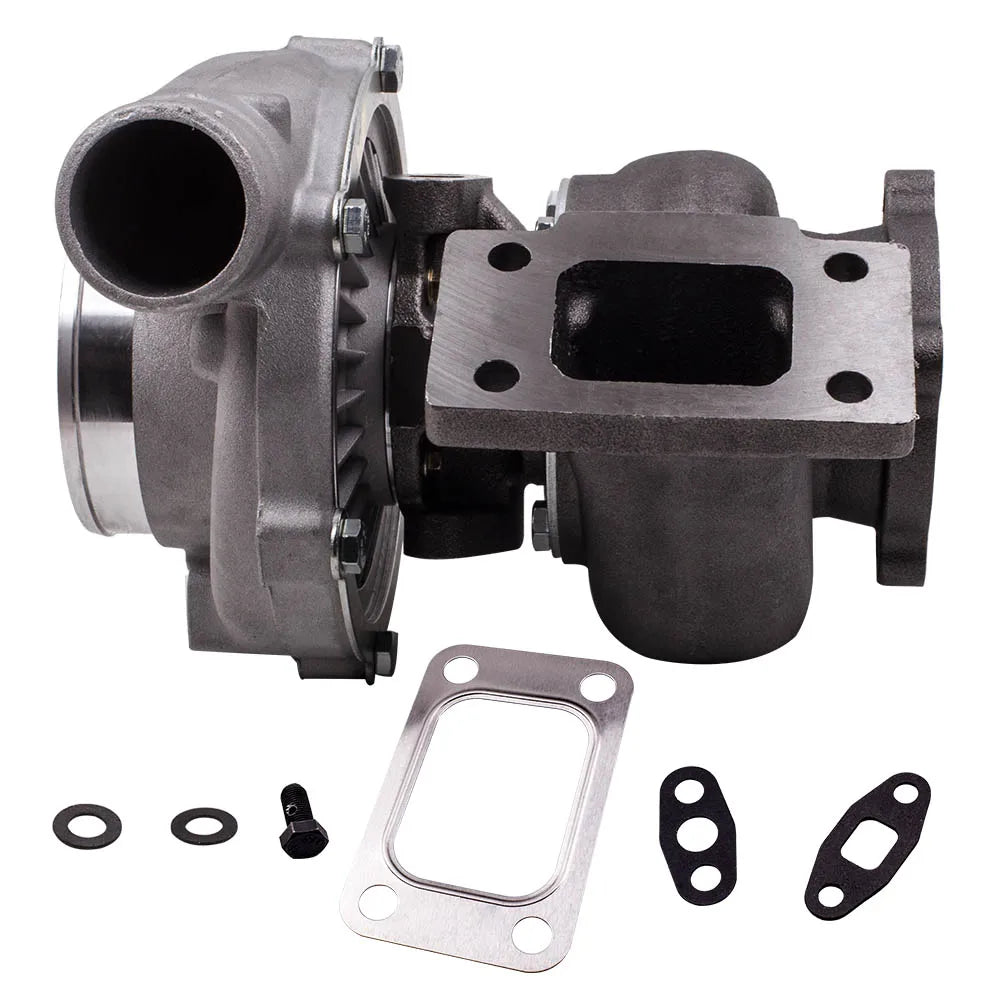

Package Includes

• 1 × GT30 / GT3037 / GT3076 Water-Cooled Turbocharger
• Mounting gaskets and hardware as shown in the product images

Compatibility

Designed for 4- and 6-cylinder engines between 2.5L and 3.0L, subject to the vehicle's available space, manifold configuration and supporting components.

Suitable for custom and aftermarket turbo installations using a T3 exhaust inlet flange and compatible 4-bolt exhaust outlet configuration.

This is a universal turbocharger. Please carefully check the dimensions, flange configuration, oil/water connections and available engine-bay space before purchasing.

Important Installation Notice

• Professional installation is highly recommended.
• Please ensure the turbocharger is correctly lubricated and supplied with clean engine oil before use.
• Replace or inspect the air filter to prevent debris from damaging the compressor wheel.
• Ensure the engine oil and oil supply system are clean and free from contamination.
• Check that the oil drain line is correctly installed and free from restrictions.
• Water-cooled installation should use the appropriate water-cooling connections.
• Turbocharger modifications or custom installation may be required depending on the vehicle.
• Always verify compatibility with your vehicle and engine setup before ordering.
