GT30 T3 T04E Turbocharger 1.5L–2.5L Up to 420HP V-Band T3 Flange Journal Bearing

GT30 T3 T04E Turbocharger – 1.5–2.5L, Up to 420 HP

Upgrade your vehicle’s performance with this high-performance GT30 T3 T04E turbocharger, designed for 1.5L–2.5L engines. Featuring a robust construction, journal bearing system and oil-cooled design, this turbocharger is built to deliver reliable performance under demanding driving conditions.

Equipped with a T3 4-bolt exhaust flange and V-Band compressor outlet, it is an excellent choice for performance builds, tuning projects and applications requiring increased engine power.

With the correct engine setup and supporting modifications, this turbocharger is capable of supporting up to 420 HP.

Key Features

• GT30 T3 T04E turbocharger
• Suitable for 1.5L–2.5L engines
• Supports up to 420 HP

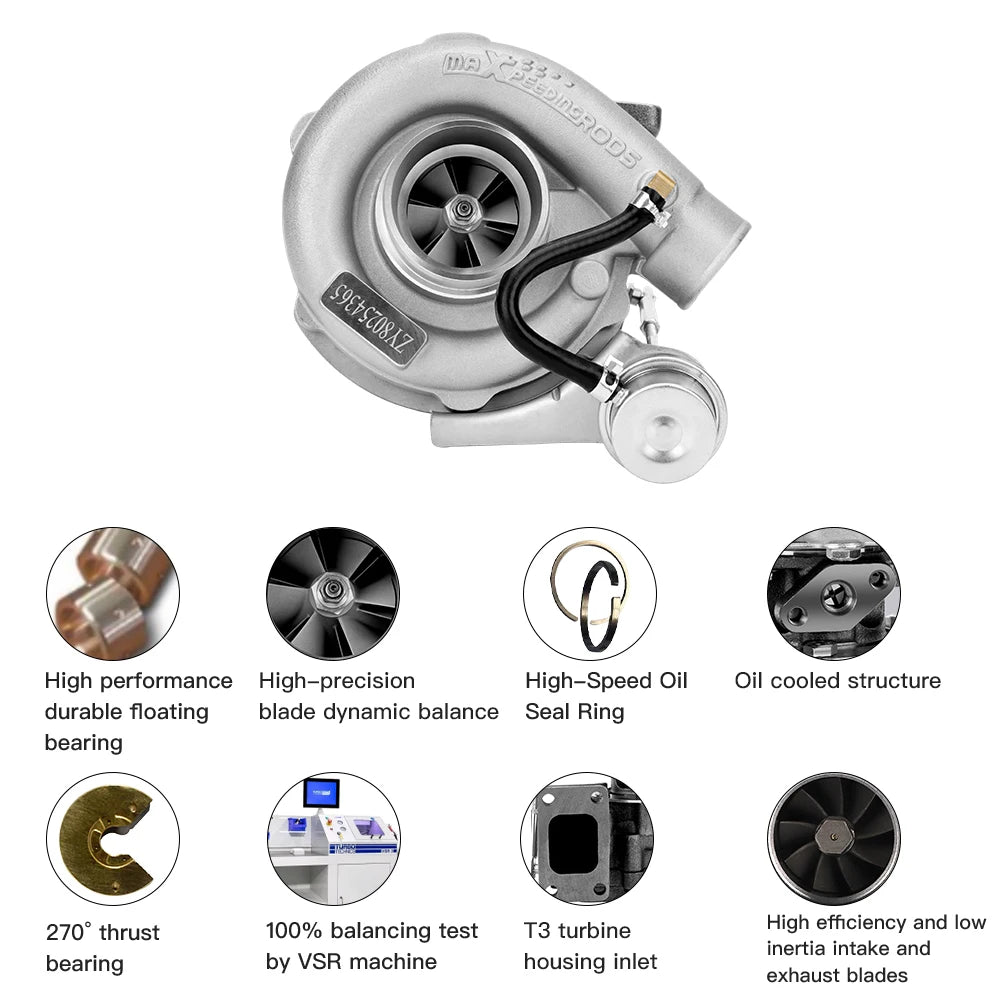

• Journal bearing design

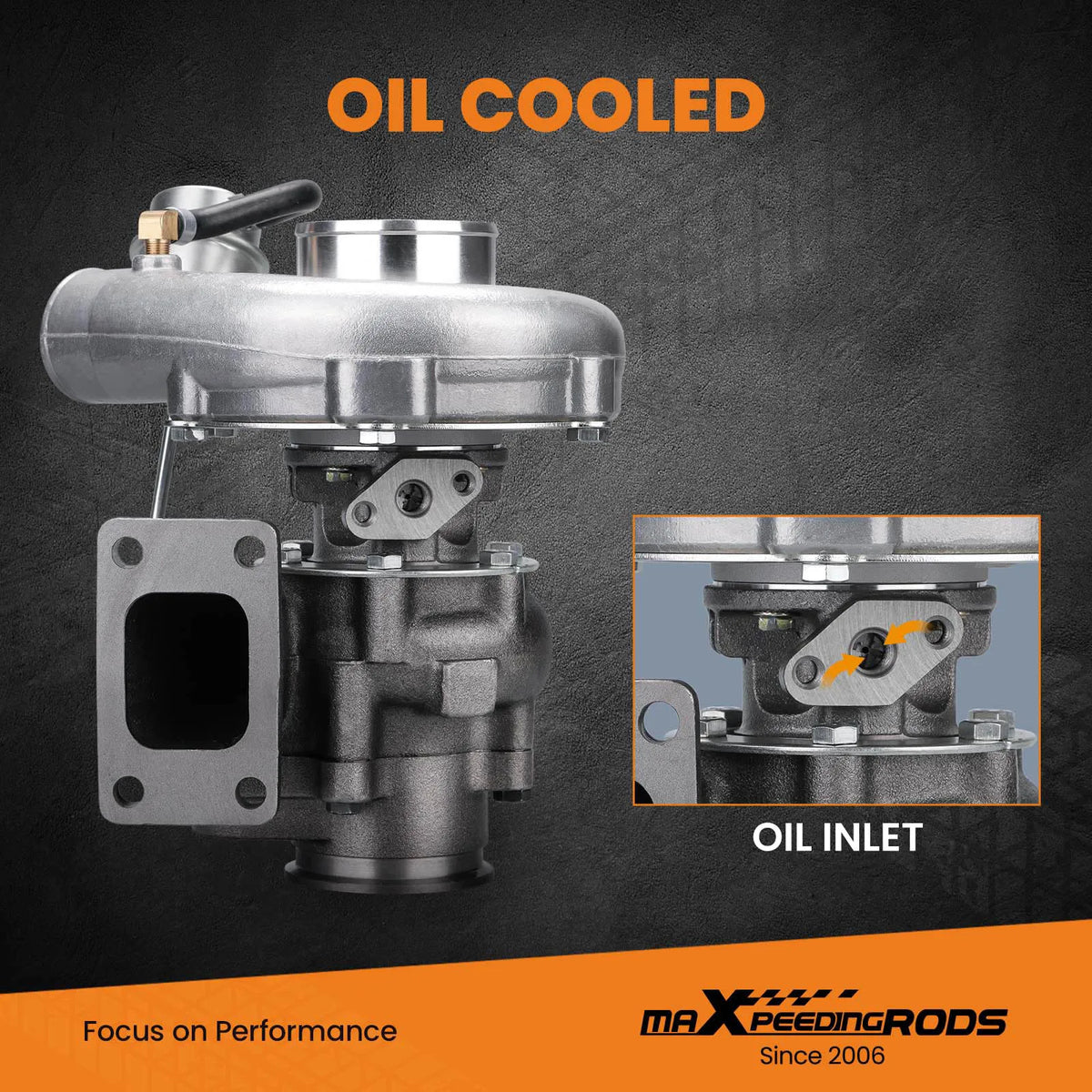

• Oil-cooled operation

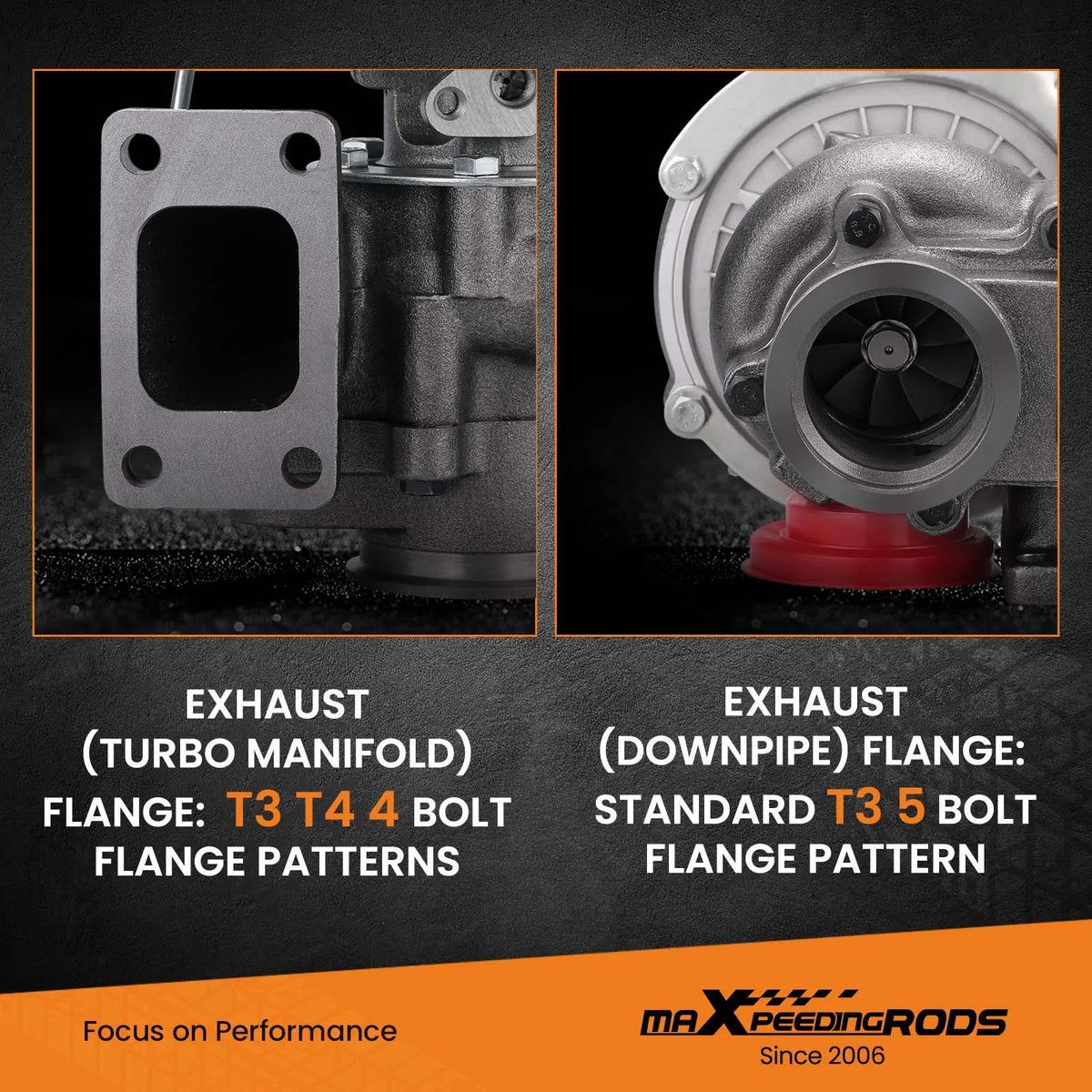

• T3 4-bolt exhaust flange
• V-Band compressor outlet
• Robust steel construction
• Precision manufactured components
• Dynamically balanced for stable operation
• Suitable for performance and tuning applications
• Wastegate equipped
• Complete set of components as shown in the product images

Specifications

• Model: GT30 T3 T04E
• Application: 1.5L–2.5L engines

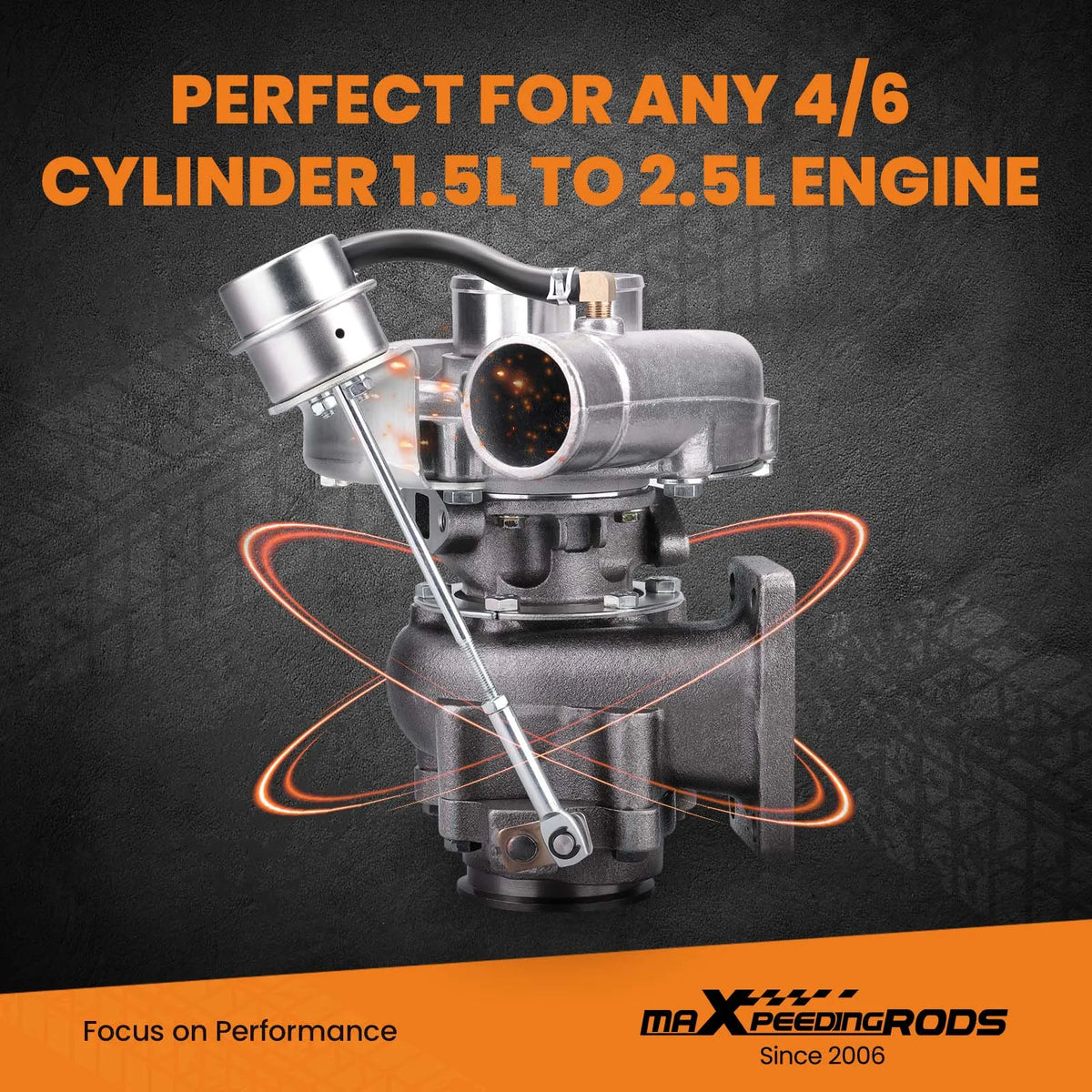

• Engine Type: 4 / 6 Cylinder
• Maximum Power: Up to 420 HP
• Bearing Type: Journal Bearing
• Cooling: Oil Cooled
• Turbine Trim: 74.2
• Turbine Inducer Diameter: 64.8 mm
• Turbine Exducer Diameter: 55.8 mm
• Turbine A/R: 0.63
• Turbine Exhaust Outlet: 79 mm
• Turbine Exhaust Inlet: 44.7 / 85.8 mm
• Compressor Outlet: 78 mm
• Compressor Inducer: 51.5 mm
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 52.7 mm
• Compressor Exducer Diameter: 76 mm
• Compressor A/R: 0.5
• Exhaust Inlet: T3 4-Bolt Flange
• Compressor Outlet: V-Band
• Wastegate: With Wastegate
• Oil Inlet: M12 × 1.25 & M8 × 1.25
• Oil Outlet: M8 × 1.25
• Warranty: 2 Years
• Condition: Brand New

Performance Advantages

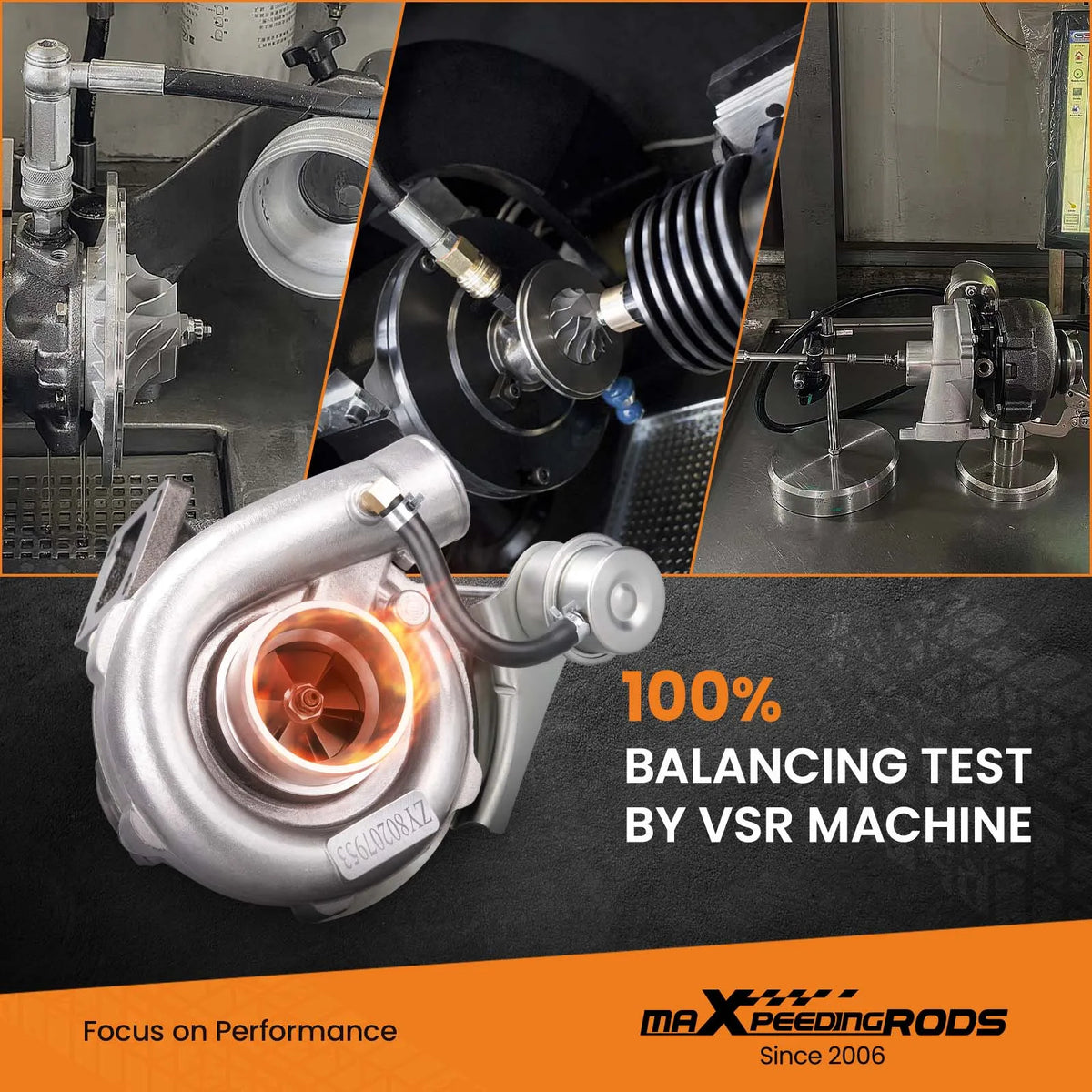

This turbocharger has been 100% dynamically balanced to help ensure smooth and stable operation at high rotational speeds.

The high-quality materials are designed to withstand high temperatures and demanding operating conditions, providing excellent durability, strength and reliability.

The lightweight turbine wheel helps the turbocharger spool efficiently and provides a responsive boost characteristic.

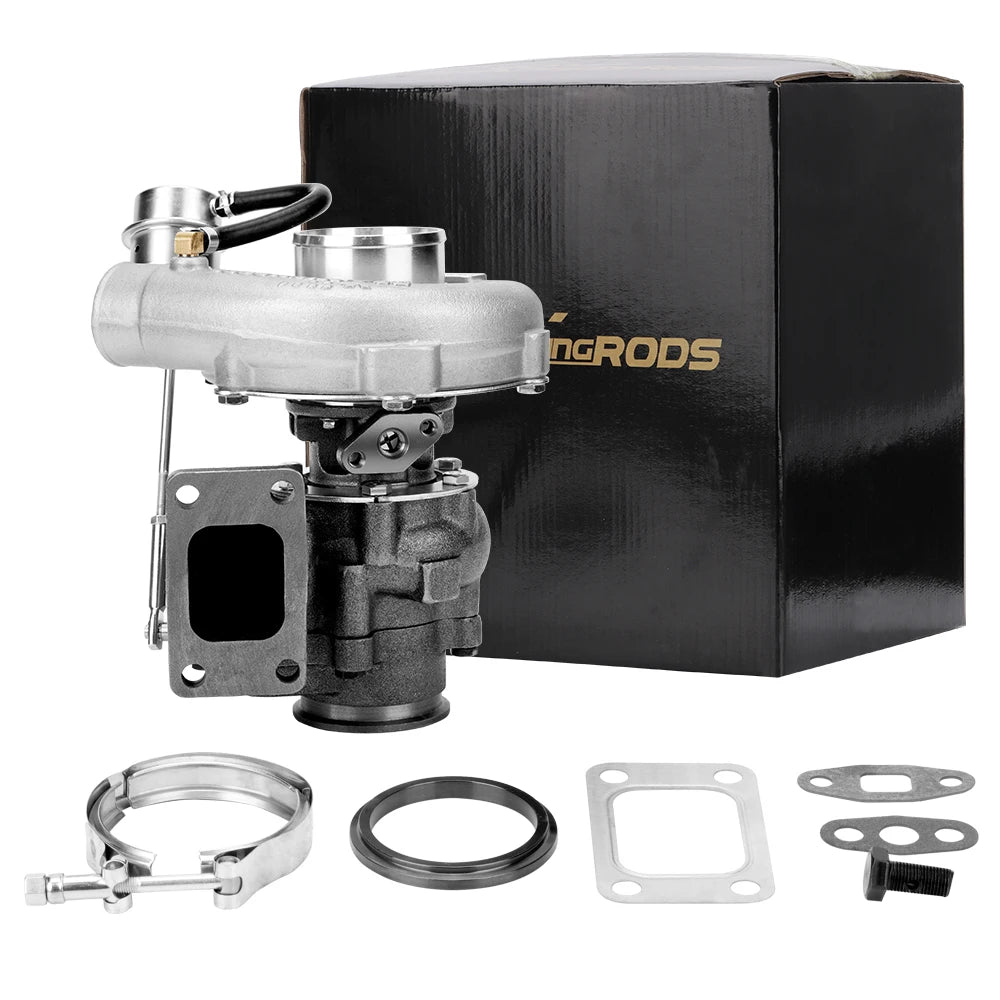

Package Includes

• 1 × GT30 T3 T04E Turbocharger
• Mounting components shown in the product images
• Gaskets
• Clamps / connection components
• Mounting hardware

The package includes the components shown in the product images.

Compatibility

Suitable for many performance and tuning applications with:

1.5L – 2.5L engines

Designed for 4- and 6-cylinder engines, subject to proper adaptation of the exhaust, intake, oil supply and engine management systems.

Please carefully check the dimensions, flange type and mounting requirements before purchasing to ensure compatibility with your vehicle.

Important Information

This turbocharger is designed for 1.5L–2.5L engines. Proper installation requires suitable oil feed and oil return lines, as well as a correctly configured intake and exhaust system.

Professional installation and proper ECU tuning are recommended for safe and reliable operation.
